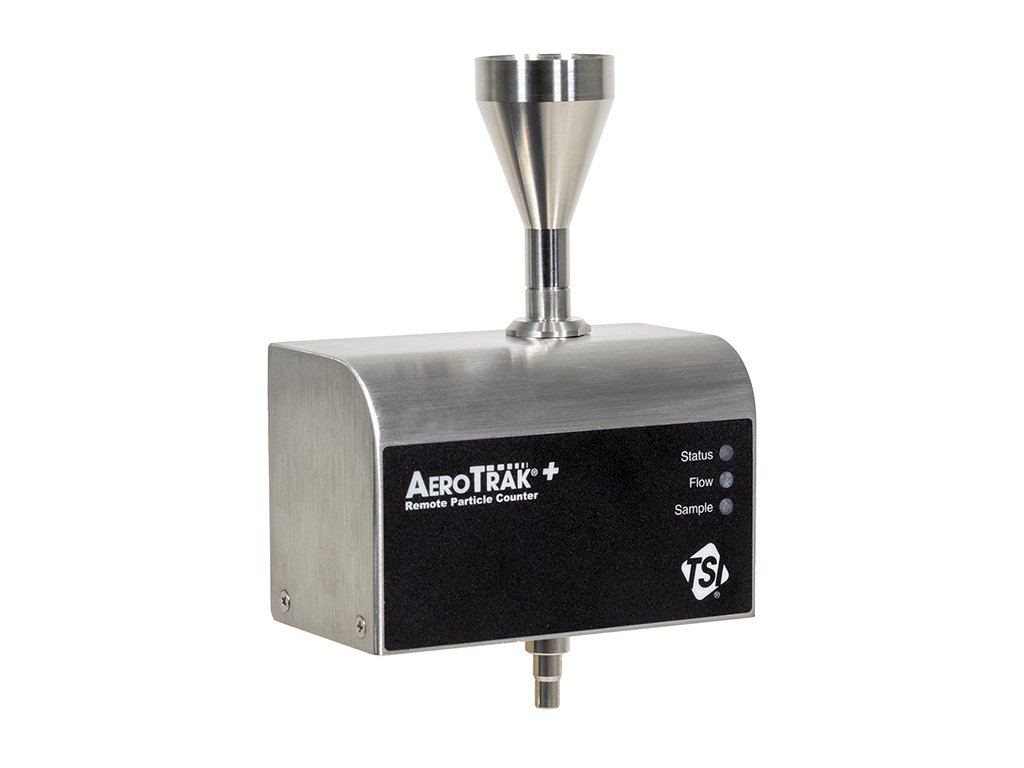

AeroTrak+ External Vacuum

Model: AeroTrak+ 7510

• TSI's AeroTrak+ 7510 isa particle sensor that measures 0.5um or more , has 2 to 4 size channels, and is equipped with an orifice to secure 28.3 LPM
• Flow rate when connected to an external vacuum. It has 250,000 memories,
• Power can be used with a POE HUB, so there is no need for separate power construction. Ethernet and wireless wifi options are applied for communication.

Specifications

• Particle Size Range: 0.5 to 10 µm
• Particle Channel Sizes: 0.5 / 0.7 / 1.0 / 3.0 / 5.0 / 10.0 µm
• Counting Efficiency: 50% at 0.5 µm, 100% for particles > 0.75 µm (per ISO 21501-4 and JIS)
• Sampling Mode: Auto, Manual, Beep, Cumulative/Diff, Count or Concentration
• Sampling Time: 1 sec to 99 hours
• Light Source: Long Life Laser Diode
• Zero Count: <1 count per 5 min (per ISO 21501-4 and JIS)
• Flow Rate: 100 LPM
• Communication: Modbus TCP over Ethernet or USB
• Data Storage: 250,000 sample records
• Dimension (H x W x D): 22.6 cm x 25 cm x 22.2 cm
• Weight: 5.4 kg
• Power: 110 to 240 VAC universal power supply
• Operating Range: 2° to 35° C
• Warranty: 2 years
• Laser Warranty: 5 years
