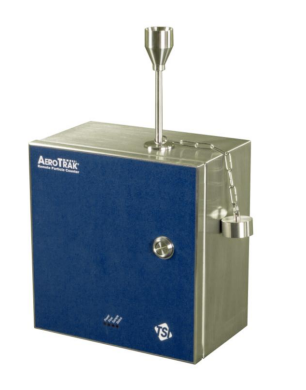

AeroTrak 6310 is a built-in pump particle sensor that measures 0.5 um or more. It
consists of 4 size channels and is equipped with a built-in pump tosecure 28.3 LPM
It supports various communication methods (Ethernet, Serial), and in particular, it has
4 4-20mA Input ports, so you can connect temperature and humidity, flow rate, or
differential pressure sensors and monitor them simultaneously.
Specifications
Particle Size Range: 0.5 to 25 µm
Particle Channel Sizes: 0.5, 0.7, 1.0, 5.0 µm
Counting Efficiency: 50% at 0.5 µm, 100% for particles > 0.75 µm (per
ISO 21501-4 and JIS)
Sampling Mode: Auto, Manual
Sampling Time: 1 sec to 24 hours
Light Source: Long Life Laser Diode
Zero Count: <1 count per 5 min (per ISO 21501-4 and JIS)
Flow Rate: 1.0 CFM (28.3 L/min)
Communication:
Ethernet (TCP/IP) and serial Modbus output
4-20 mA Analog Outputs: 2 channel log/linear
Data Storage: 3,000 sample records
Dimension (H x W x D): 26.7 cm x 25.4 cm x 15.5 cm
