HPD (High Pressure Diffuser)

Total Air Particulate Compressed Air/Gas High Pressure Diffuser

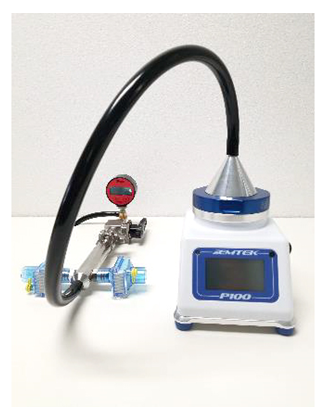

High Pressure Diffuser to assist in the testing of compressed air/gas systems for total air particulates. This diffuser can be used in conjunction with almost any Laser Particle Counter (LPC) on the market with a 1CFM, or 28.3, 50, 75, or 100 LPM Flow Rates for testing of particles down to 0.3microns. With the three piece construction of electro polished 316SS, the unit itself generates virtually no particulate matter.

Specification

316 Stainless Steel / Electro-polished
1 CFM, 28.3, 50, 75 and 100 LPM Laser Particle Counter (LPC)
1 CFM, 28.3, 50/15-18 to 125 PSI
75 or 100 LPM/18-21 to 125 PSI
1” Sanitary Fitting (0.980” OD)
0.375“/0.188“ OD (28.3/50 LPM)
0.500“ OD (75/100 LPM)
5.5“ Length x 1.25“ OD
